Description:

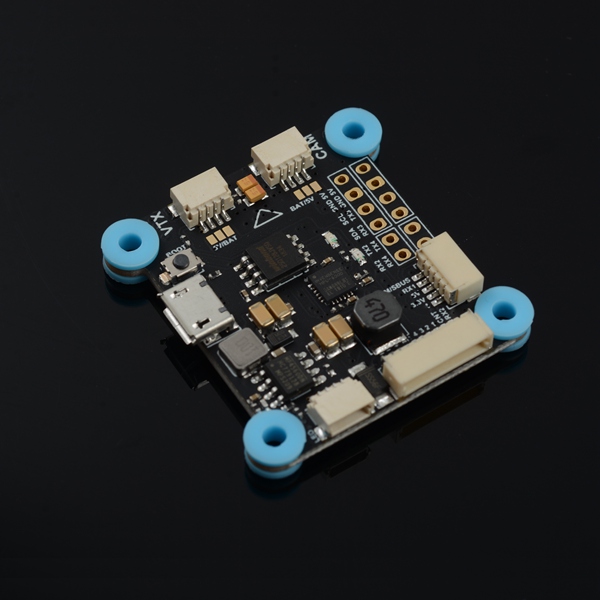

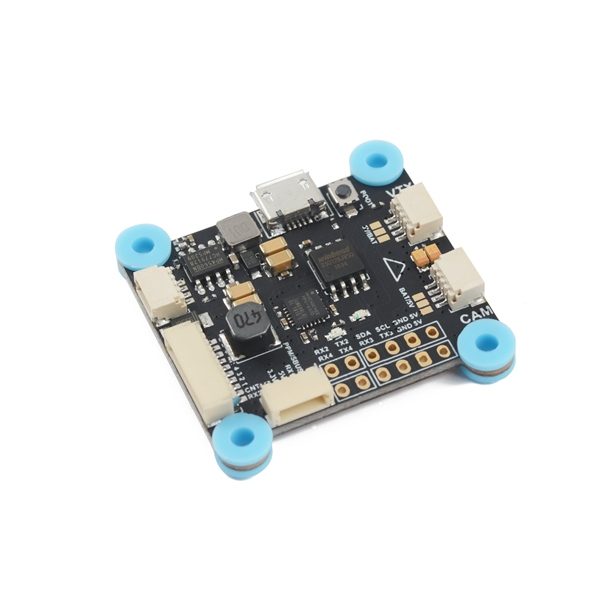

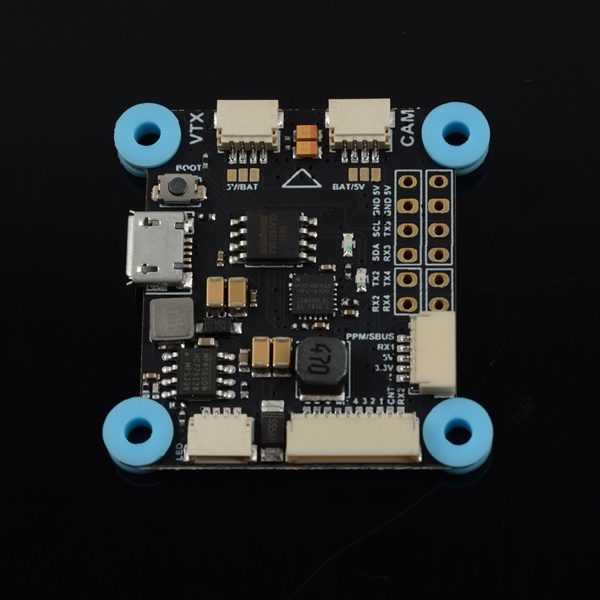

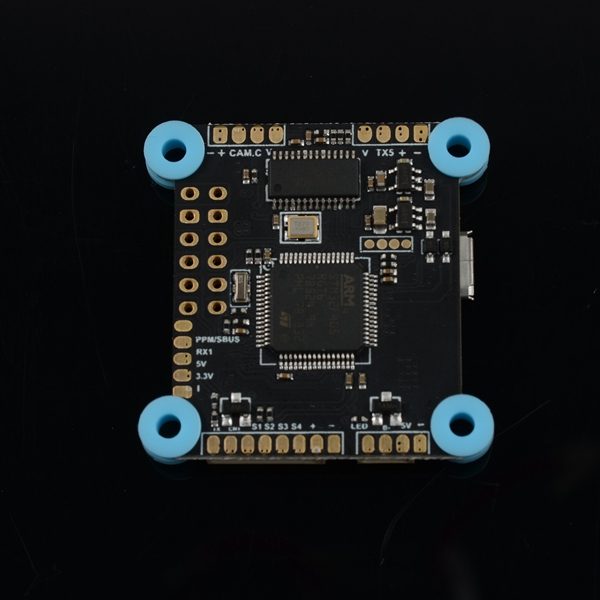

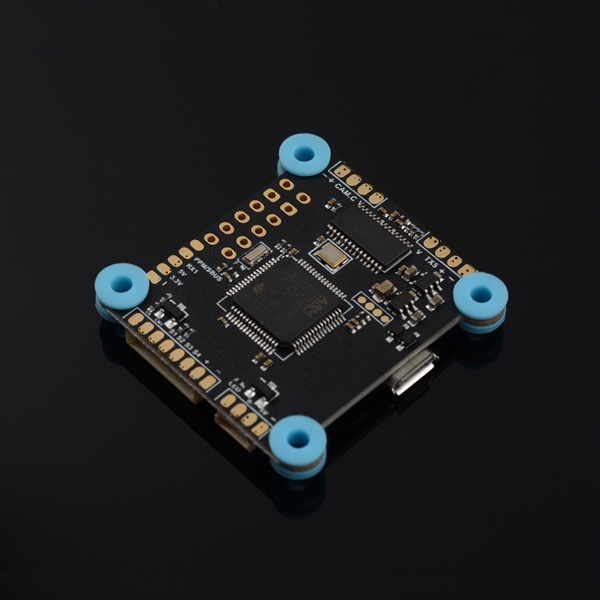

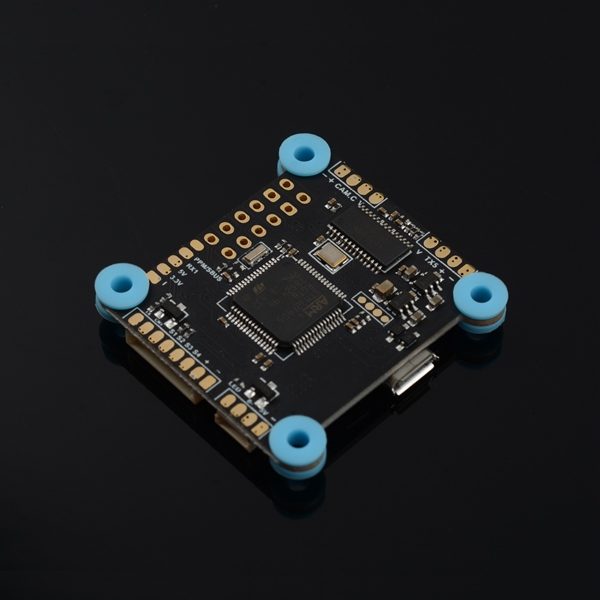

spare Flight Controller for the Scorpion 5″ /LAFON220
also can be used other FPV drone.
Specifications:
F4 (STM32F405) Processor
Gyroscope: MPU6000
Firmware: Betaflight DALRC F405
Input Voltage: 2-6s lipo support
OSD: integrated
BEC: 9V/2A
Flash memory: 16M
Supports receivers: SBUS , PPM, DSMX.
Receiver serial port:Uart1
SmartAudio port:Uart6
DSM receiver powered from 3.3V
SBUS and PPM powered from 5V
Supports alarm Buzzer, programmable LED.
Size: 36x36mm – hole distance: 30.5×30.5mm
